Multi-functional Food Vegetable Dryer Machine Onion Drying Machine
- Yomier
CT-C-II
- Original Multi-functional Food Vegetable Dryer Machine Onion Drying Machine
- CE ISO, CE/ISO
- One set Multi-functional Food Vegetable Dryer Machine Onion Drying Machine
- Negotiation
- 2630x1200x2000MM
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 136
Product Description
Multi-functional Food Vegetable Dryer Machine Onion Drying Machine
Product Description
1. This Vegetable/Fruit/Food dryer is widely used for dehydration of vegetable, pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry materials and products. Such as vegetables, fruits, fishes, medicines, Chinese herbs, particles, granules, packing bottle, pigment dyes, sausages, plastic resins, and baking finish etc.
2. Both inside and Outside are stainless steel.
3. Stainless steel drying plate with plate size is 640x460x45mm
4. The material of heat preservation: fiberglass cotton w/thickness 80mm
5. Stainless steel drying car
6. Energy saving style air blast machine: 3 pcs with power 0.45kw
7. Heat source: steam OR electricity
8. Temperature is from 50°C to 150°C for steam heating and 50-350°C for electricity heating.
9. digital display: 1 set
Different Models
Technical Parameters
Model | CT-C-IA | CT-C-I | CT-C-II | CT-C-Ⅲ | CT-C-IV |
Capacity of each batch | 60kg | 120kg | 240kg | 360kg | 480kg |
Power | 0.45kw | 0.45kw | 0.9kw | 1.35kw | 1.8kw |
Consumption of steam | 10kg/h | 18kg/h | 36kg/h | 54kg/h | 72kg/h |
Consumption of Electricity | 9kw/h | 15kw/h | 30kw/h | 45kw/h | 60kw/h |
Thermal area | 10m2 | 20m2 | 40m2 | 80m2 | 100m2 |
Air volume | 3400m3/h | 3450m3/h | 6900m3/h | 10350m3/h | 13800m3/h |
Temperature used | ±2°C | ±2°C | ±2°C | ±2°C | ±2°C |
Qty of the baking plate | 24 | 48 | 96 | 144 | 192 |
Overall Dimension(mm) | 1400x 1200x2000 | 2630 ×1200×2000 | 2630 ×2200×2000 | 3430 ×2200×2000 | 4460 x2200x2290 |
Bake matching vehicles | 1 | 2 | 4 | 6 | 8 |

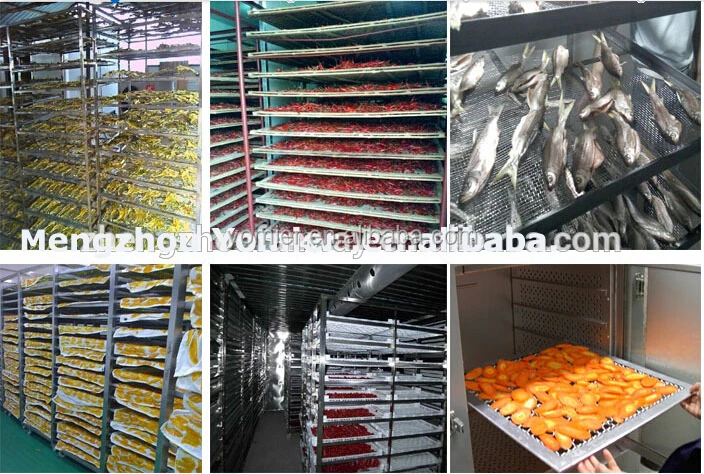

Finished-products pictures:
Detailed Images
